CRH-750HLV Low Voltage Pressure Relief Port, 3 Flap

CRH-750HLV

Out of stock Temporarily Out of Stock

Stock Code

CRH-750HLV

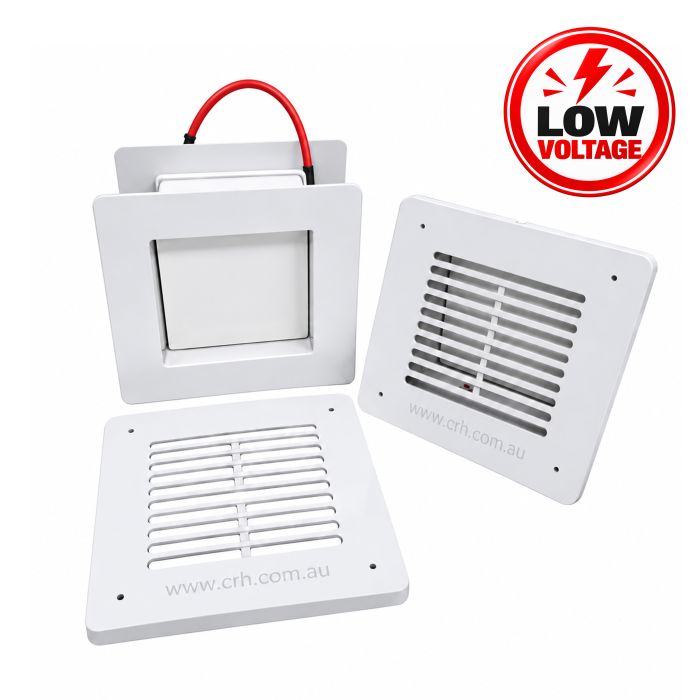

The CRH-750HLV is a heated pressure relief port operated by 3 flaps which open in either direction dependent on the airflow pressure.
The heating element is a 48 watt / metre constant output low voltage heater cable, 24 volt AC with a 0.277 amp draw. Cable terminations to a 240/24 volt AC step down transformer of 180 VA will allow up to 3 of these Ports to be connected to 1 Transformer.

Material: Polycarbonate
Flange Size: 250mm x 250mm
Cutout Size: 175mm x 175mm
Panel Thickness: 150mm

$425.00 $467.50

Additional Information

Please Note:

Heaters for Pressure Relief Valves / Ports and or Door Frames must not be activated (switched on) before the room is brought down to operating temperature.
