K10488C00318300400

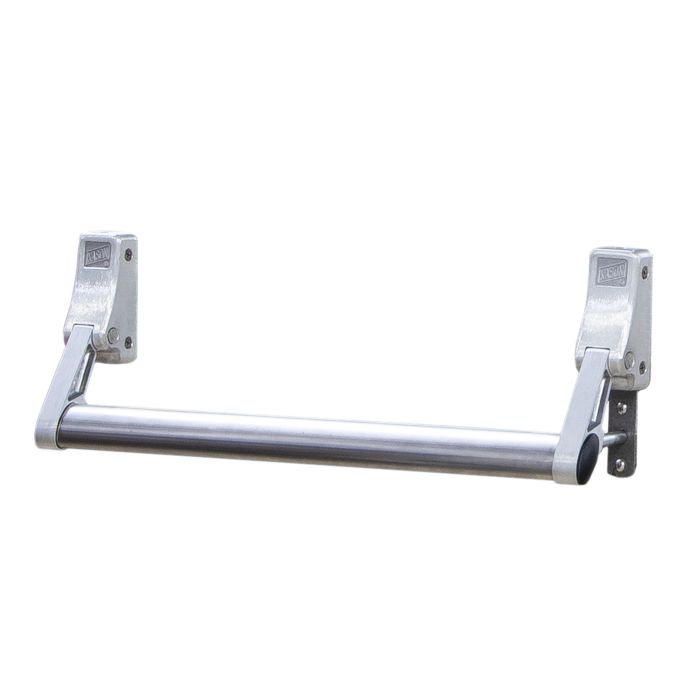

Kason Cross Bar Inside Release for 58,78 & 778 Series Latches. 75mm & 100mm Door Thickness.

• Large optional hands-free contact area to open door
• Crossbar design provides simple low-effort operation
• Stainless steel and aluminum materials
• Accommodates left and right handed doors
• Temperature range:  -40°C to 65°C

For 2'' Doors:

• For a 2'' wall, the rod should be cut to 5.46'' long. (139mm)
• The standard bar can be cut down to suit the required dimensions
• The ends must be rounded, but the rounds do not need to be perfectly shaped
