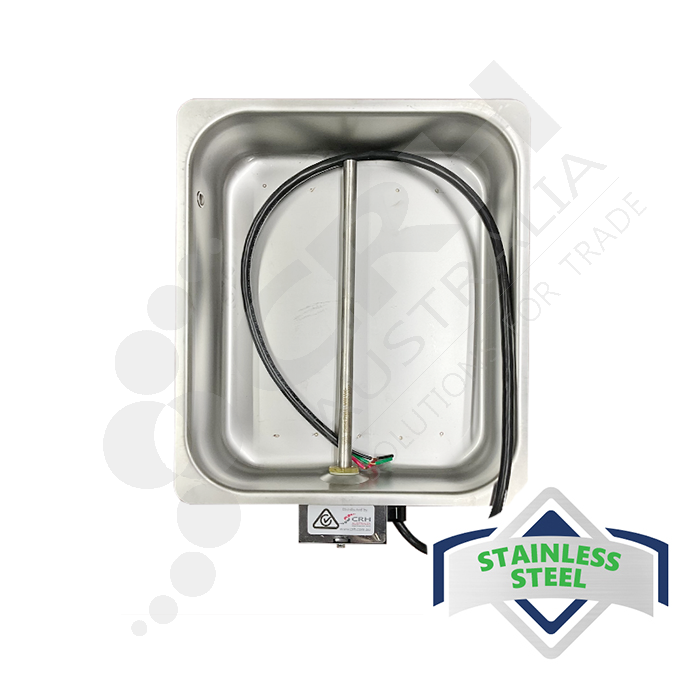

Evapoway PTC05WS-3 Condensate Evaporator. 4.5lt Capacity
PTC05WS-3
In stock
Stock Code
PTC05WS-3
The PTC05WS-3 Evapoway Condensate Evaporator is ideal for HVAC and commercial refrigeration applications where drainage is not accessible.
- 240V
- 500W
- 2.08 AMPS
- Pan Capacity 4.5lt
- Dissipation Rate 15 litres per 24hrs
- 900mm Cord, No Plug - Electrician to Connect
Overall Dimensions:
- 360L x 260W x 80D mm
Material: Stainless Steel 304 Grade
$321.00 $353.10
Evapoway PTC05WS-3 Condensate Evaporator Pan. 240V. 500W. 4.5lt Capacity.
PTC Benefits
The PTC heater eliminates the need for electro-mechanical controls, control boxes and lever sensors.
The robust design provides continuous evaporation, automatically regulating the wattage based on water level and temperature. All in a simplified, space-saving design.
Condensate Pan
Stainless Steel 18 Gauge 304 Grade
Mounting Feet
12.5mm long slotted holes
Overflow Drain
10mm outside diameter.
Caution: Pan & Element remain hot to touch when the pan is empty.
PTC Benefits
The PTC heater eliminates the need for electro-mechanical controls, control boxes and lever sensors.
The robust design provides continuous evaporation, automatically regulating the wattage based on water level and temperature. All in a simplified, space-saving design.
Condensate Pan
Stainless Steel 18 Gauge 304 Grade
Mounting Feet
12.5mm long slotted holes
Overflow Drain
10mm outside diameter.
Caution: Pan & Element remain hot to touch when the pan is empty.
Default Category
-
Evapoway PTC Install Instructions Size: (168.6 KB)
